General
Power supply 100-120V AC / 220-240V AC 50/60Hz (selector switch available on bottom of unit)
Net weight 18Kg
Gross weight 21.5Kg
Color Black
Dimensions 430 x 310 x 147mm
Package 1x Power amplifier AMP-F10
1x Trigger cable
1x Mains cable
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件

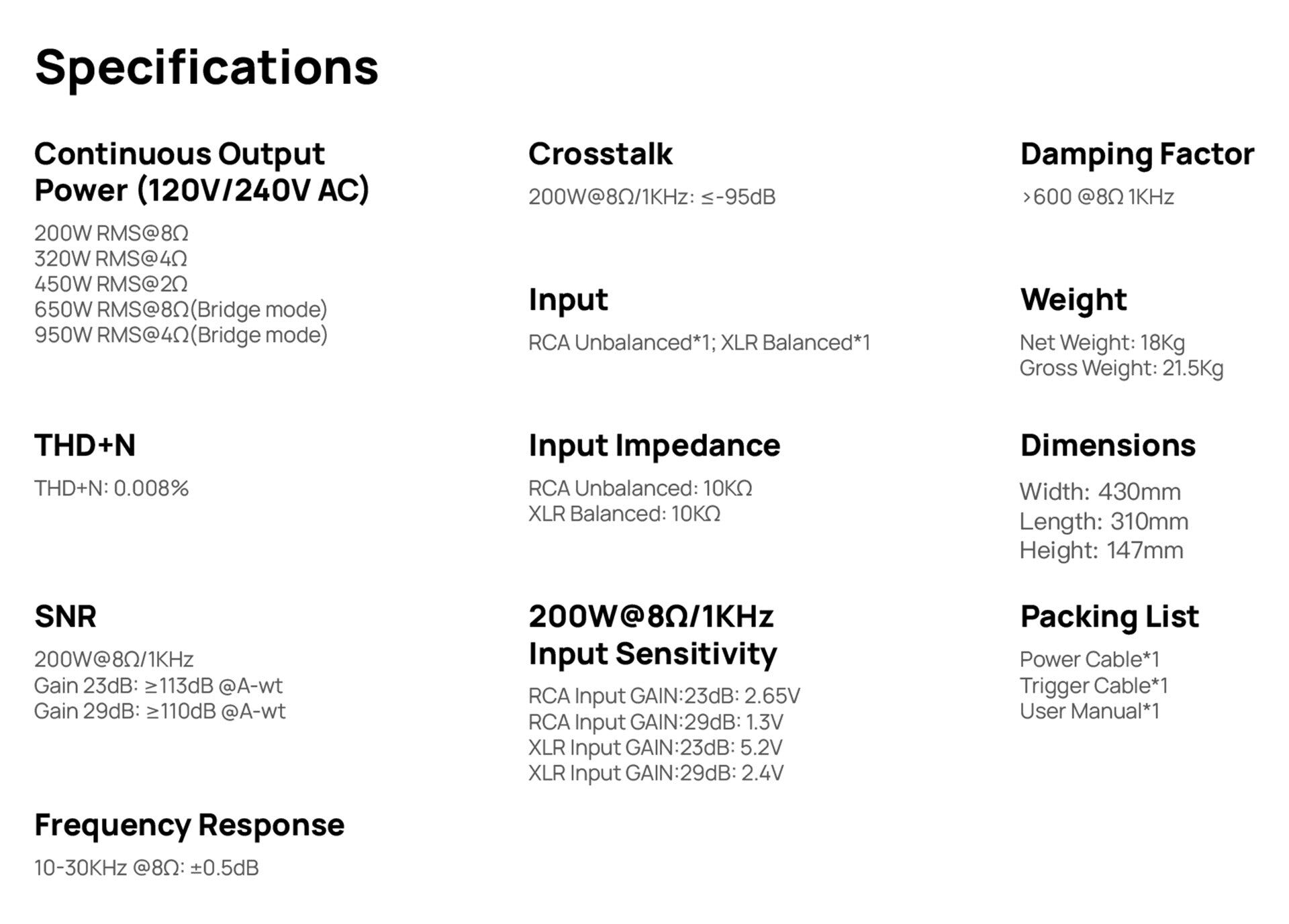

| Product type | Power amplifier |
| Class | AB |

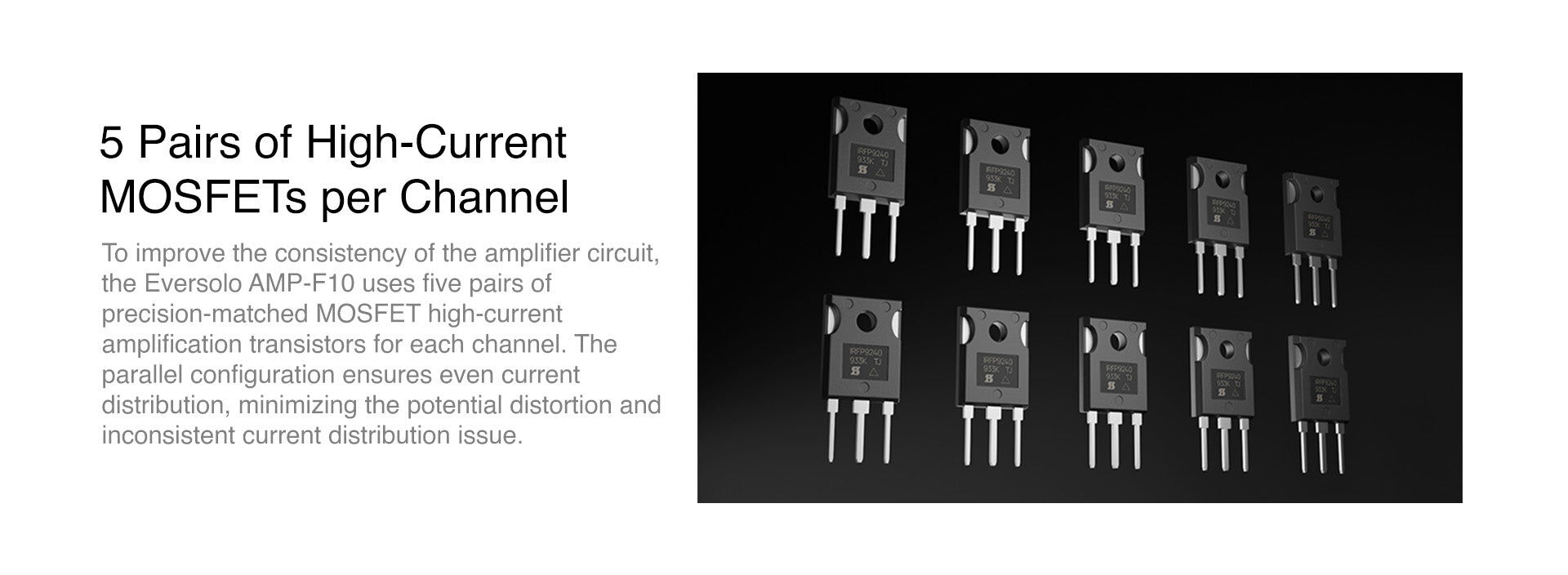

| Transistors | 5x MOSFET transistors (left channel) 5x MOSFET transistors (right channel) |

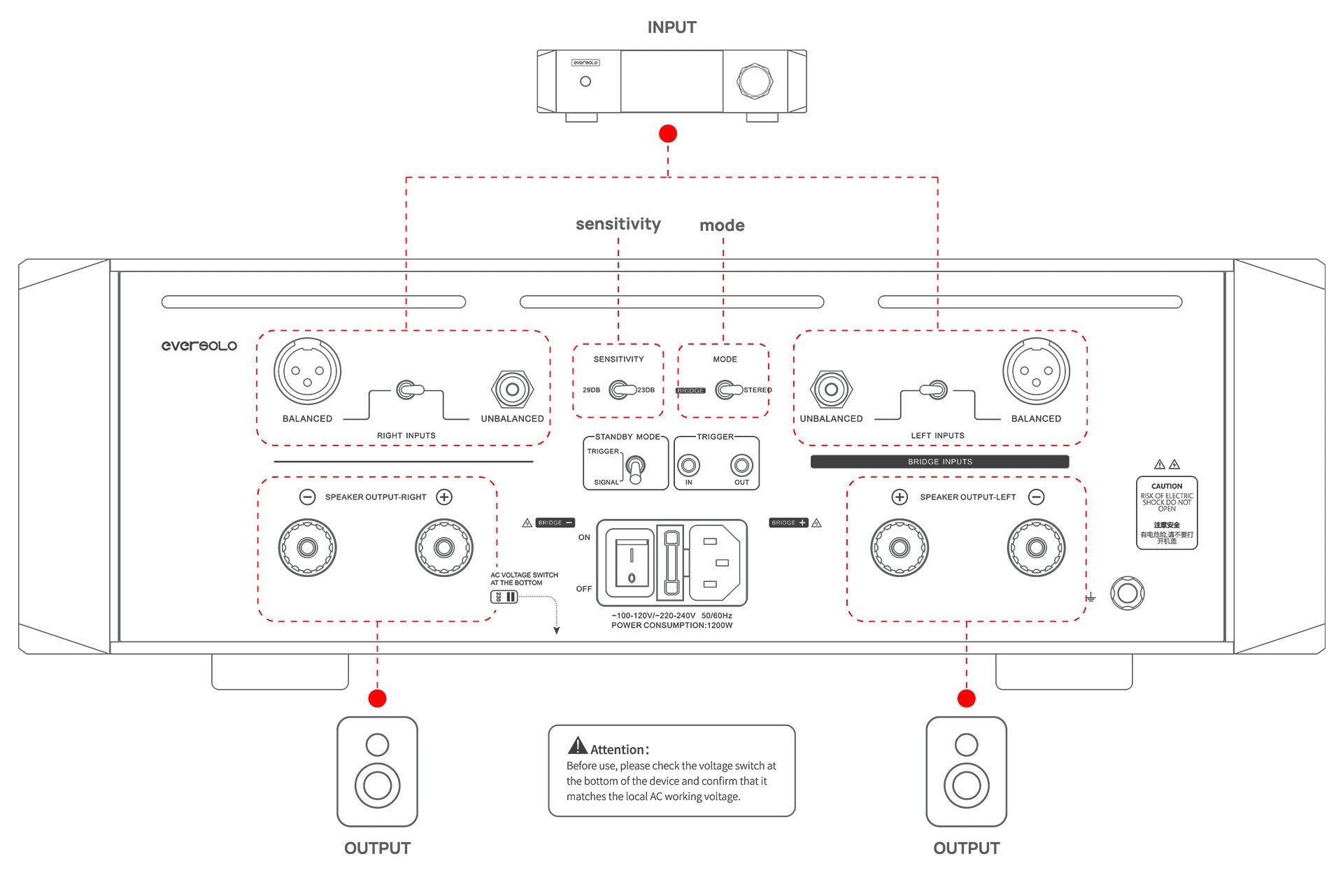

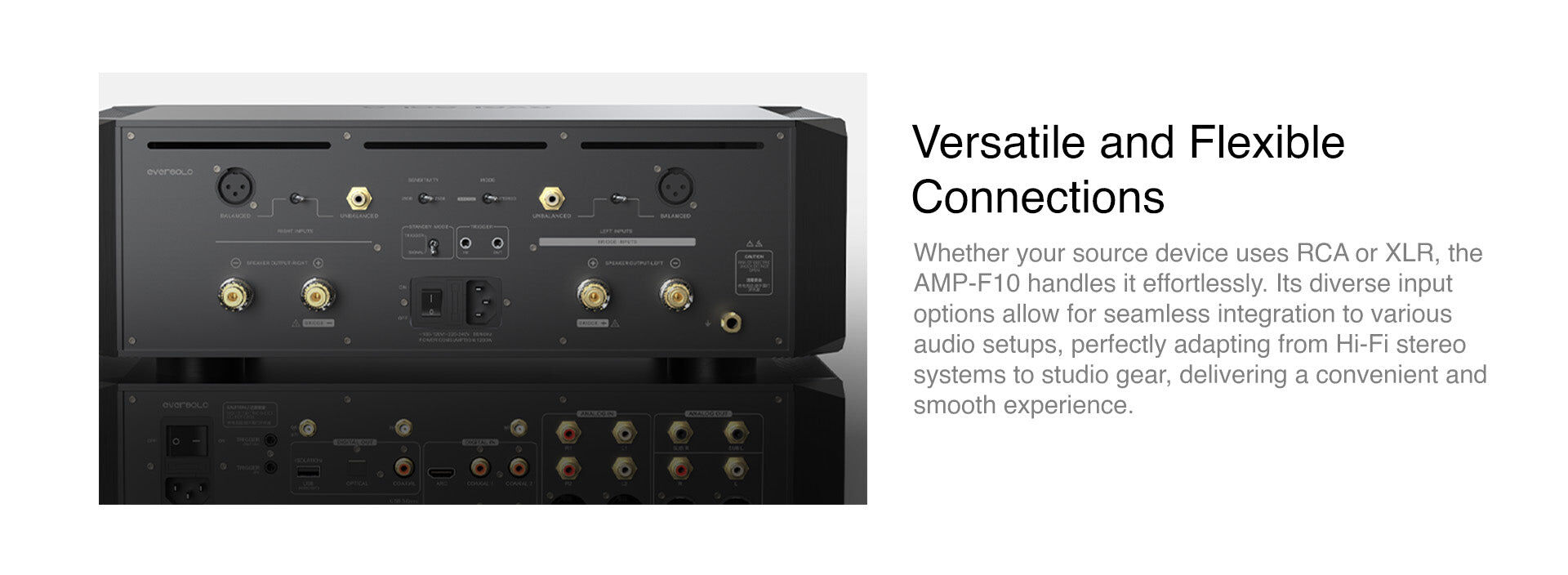

| Inputs | 1x Single-ended RCA stereo input 1x Balanced XLR stereo input |
| Output | Speaker terminal output |
| Other connectors | Trigger in / out |
| Input sensitivity adjustment | 23dB/29dB |
| Output power | 2x 320W @ 4 ohm 2x 200W @ 8 ohm 2x 450W @ 2 ohm 1x 950W @ 4 ohm 1x 650W @ 8 ohm |

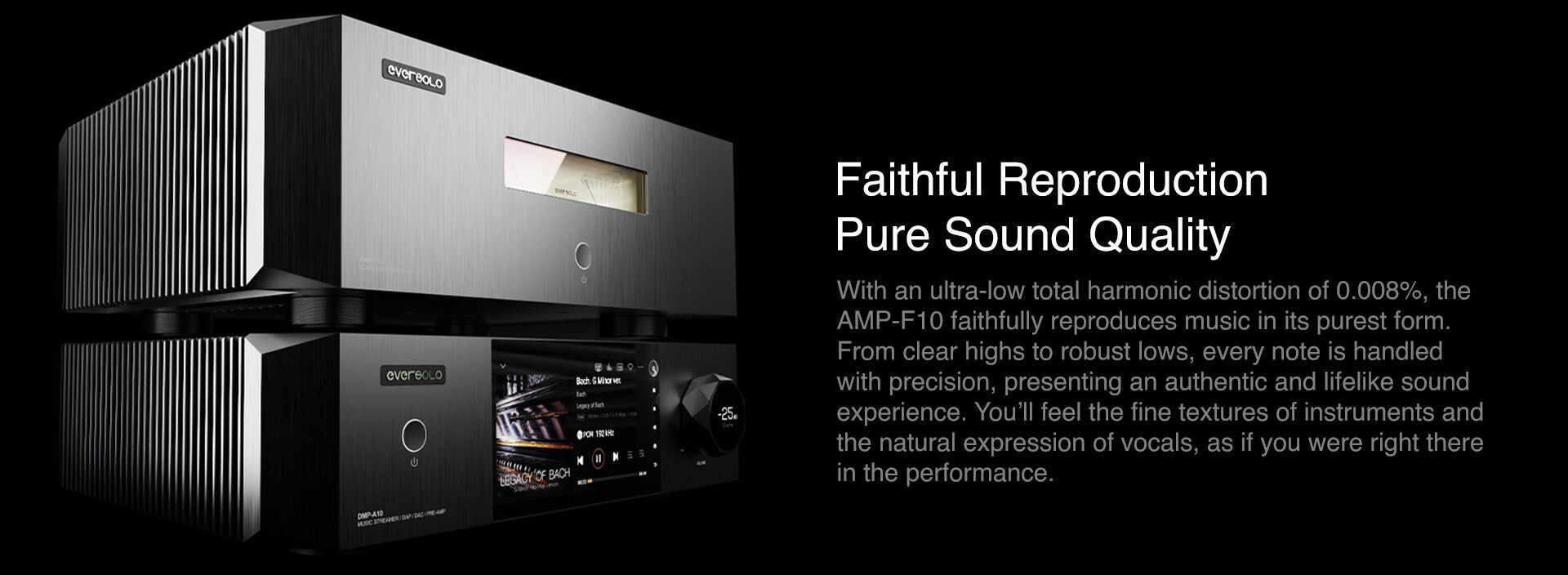

| THD+N | 0.008% |

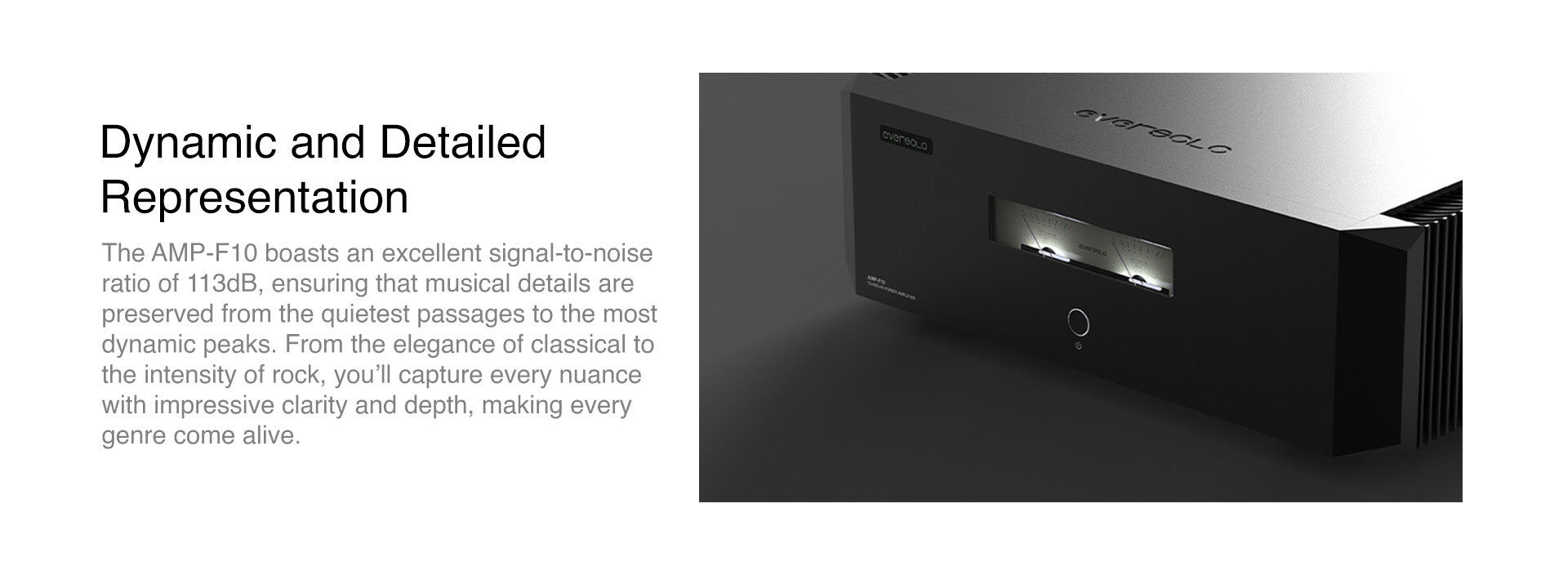

| SNR | 200W @ 8Ω/1kHz Gain 23dB : ≥ 113dB @A-wt Gain 29dB : ≥ 110dB @A-wt |
| Frequency response | 10Hz-30kHz @ 8 ohm (±0.5dB) |
| Crosstalk | 200W @ 8ohm/1kHz ≤ -95dB |
| Input impedance | RCA : 10KΩ XLR : 10KΩ |
| Input sensitivity (200W @ 8ohm/1kHz) | RCA input gain 23dB: 2.65V RCA input gain 29dB: 1.3V XLR 23dB input gain: 5.2V XLR 29dB input gain: 2.4V |
| Damping factor | >600 @ 8ohm/1kHz |
| General | |
|---|---|

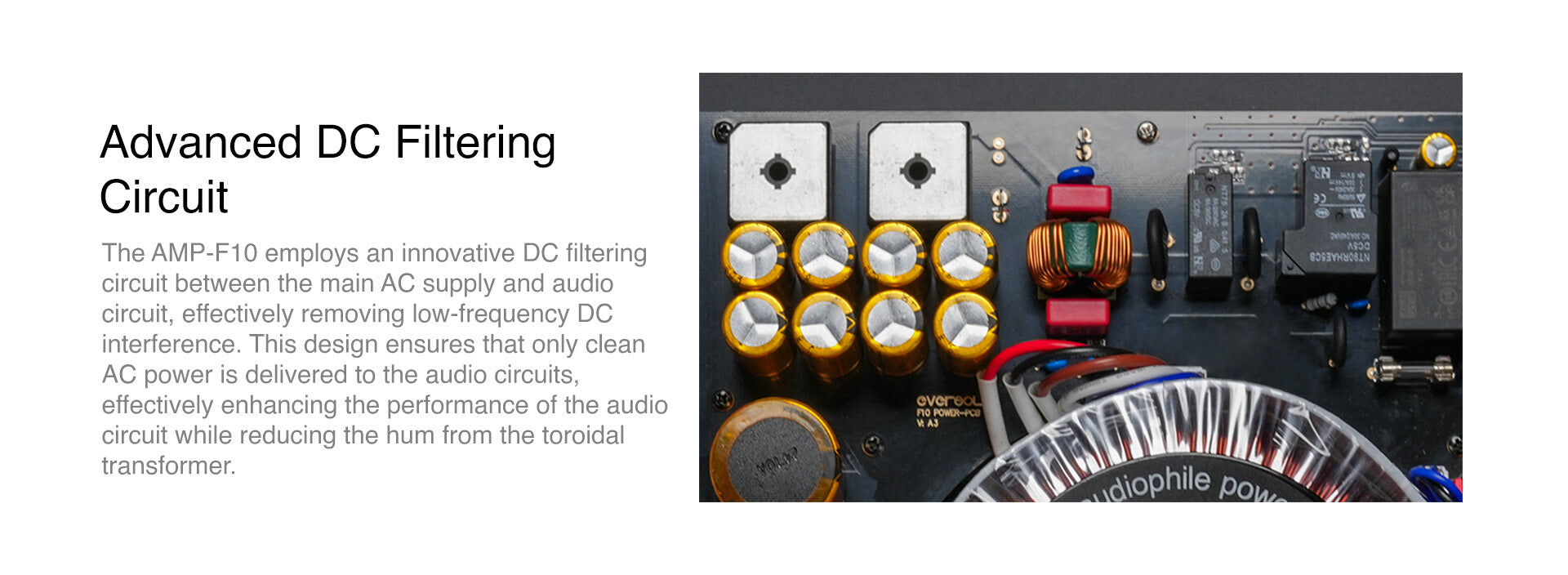

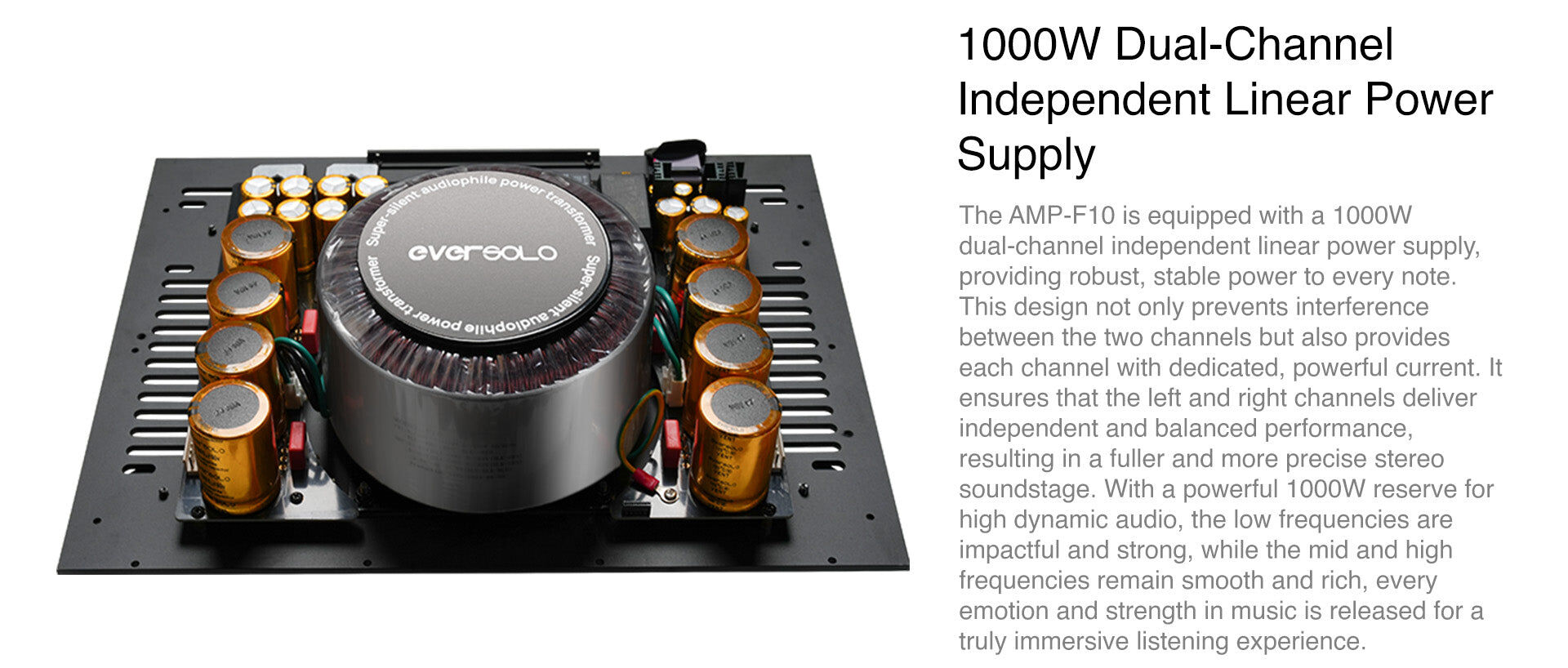

| Power supply | 100-120V AC / 220-240V AC 50/60Hz (selector switch available on bottom of unit) |
| Net weight | 18Kg |
| Gross weight | 21.5Kg |
| Color | Black |
| Dimensions | 430 x 310 x 147mm |
| Package | 1x Power amplifier AMP-F10 1x Trigger cable 1x Mains cable |
